Product Description:

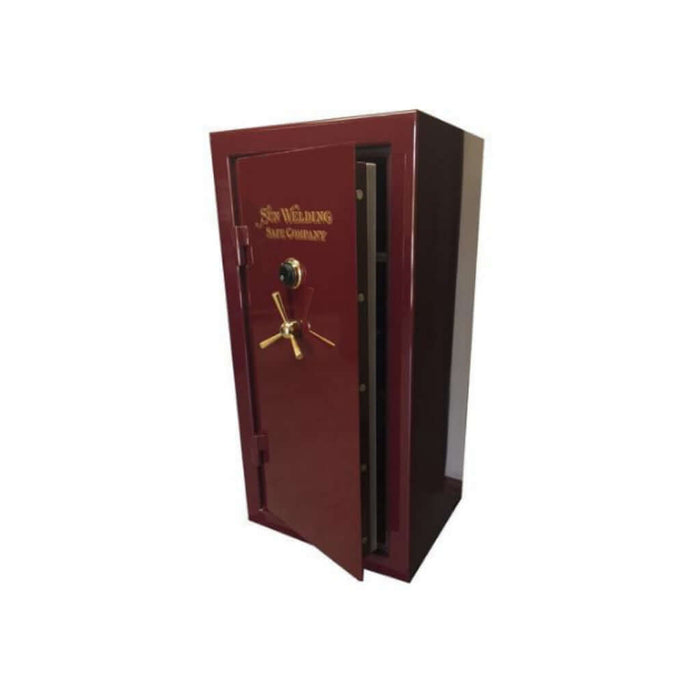

The Heirloom Series by Sun Welding offers a high-quality safe at a competitive price, built to provide exceptional security and fire protection for your valuables and firearms. Constructed with a 3/16" steel plate door and a 12-gauge steel body, this safe ensures reliable strength and durability. The Heirloom Series is equipped with your choice of a Group II combination lock or an electronic lock, both of which are protected by a 1/4" hard plate and 1/2" absorption plate to resist impact, drilling, and punch attacks.
In addition to its solid construction, the Heirloom Series features independent two-way bolt works, secured by two spring-loaded re-locking systems that lock the entire bolt mechanism together. This setup includes five active bolts on the opening side and five deadbolts on the hinge side, offering comprehensive protection against tampering.
For fire protection, the Heirloom Series comes standard with fire insulation rated to withstand 1200°F for 30 minutes. The safe is further enhanced with UL-rated fire insulation on all six interior surfaces and a heat-expanding seal that swells up to eight times its size in the event of a fire, sealing the door to protect your items from smoke and heat.

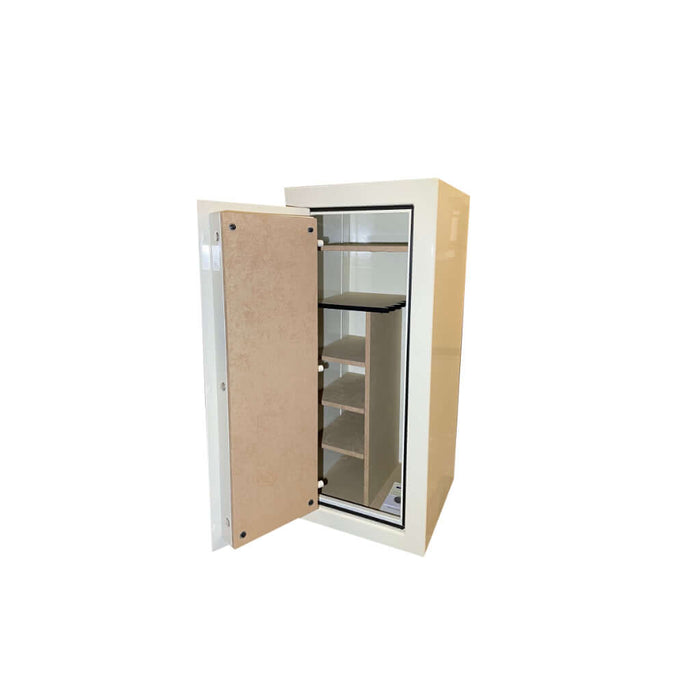

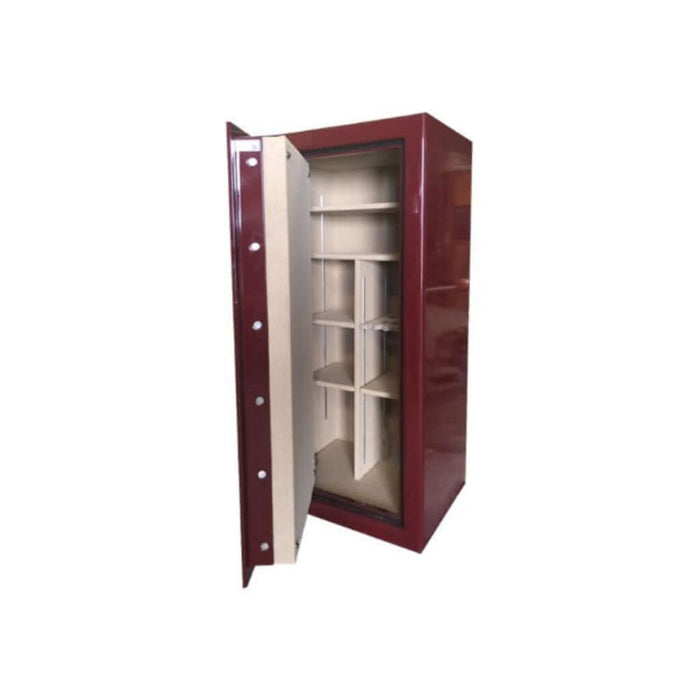

The interior of the safe is fully adjustable, allowing you to maximize gun storage capacity and provide ample shelving space. Several layout options are available to fit your needs, ensuring your valuables are organized and easily accessible. The exterior comes standard in matte gray, with an upgrade option to choose from ten gloss colors. To finish off the look, hand-applied artwork adds a personalized touch to each safe.
The Heirloom Series is the perfect choice for a home office or garage, offering the best in security and fire protection. Proudly made in America, this safe combines durability, style, and strength to keep your most valuable possessions secure.
Security Features:
-
Heavy Duty 3/16” Solid Steel Door for maximum strength and security
-
12 Gauge Solid Steel Construction offers superior durability and resistance
-
2-Way Locking Bolt System with 3 Active and 3 Dead Bolts for ultimate protection
-
UL Approved Electronic Lock or Mechanical Lock for secure, customizable access options
-
Exceeds UL Specifications for enhanced fire and burglary protection
-
California DOJ Approved Firearm Safety Device meets stringent California firearm safety requirements
-
Heat Expandable Door Seal provides additional fire protection, sealing the door in case of heat exposure
-
Pre-Drilled Bolt Down Holes & Hardware Included for easy installation and added stability
Ideal for those seeking maximum fire protection and secure firearm storage, this safe is engineered to meet the most demanding security standards. Whether you're protecting valuables or firearms, trust this solid steel safe to deliver superior firearm safety and fire protection for years to come.
Fire Rating and Dimensions:
The Heirloom Series Gun Safe is engineered with advanced fire protection features, designed to keep your firearms, valuables, and important documents safe in the event of a fire. The fire insulation is applied on all six sides of the safe, ensuring full coverage. Additionally, a heat-sensitive expanding fire seal is used around the door, swelling up to eight times its size to seal any gaps and provide extra protection against heat exposure.
Fire Rating Process
The fire rating is determined by subjecting the safe to extreme heat. The test involves placing the safe in an oven heated to 1200°F for a specified amount of time. After the designated test time, the internal temperature of the safe is measured, ensuring it remains below 350°F to protect contents. The actual burn time of the safe depends on several factors, including the temperature and duration of the fire.
Available Fire Protection Durations:
-
30-Minute Fire Rating: Weighs 430 lbs
Internal Dimensions: 52.5”H x 22”W x 18”D
Protects against shorter-duration fires with reliable fire resistance.
-
60-Minute Fire Rating: Weighs 475 lbs
Internal Dimensions: 51.25”H x 20.75”W x 16.5”D
Provides extended fire protection for longer periods of exposure.
-
90-Minute Fire Rating: Weighs 520 lbs (No Top Shelf)
Internal Dimensions: 49”H x 17.5”W x 15.25”D
Ideal for those requiring superior fire resistance for longer durations.
-
120-Minute Fire Rating: Weighs 565 lbs
Internal Dimensions: 48.75”H x 18.25”W x 14.25”D
The highest level of fire protection, with a 2-hour fire rating for the most demanding needs.
Each of these models provides exceptional fire protection, with insulation covering all six sides of the safe and a heat-expanding seal to protect your valuables. Choose the fire rating that best fits your needs, whether you're looking for short-term fire protection or the ultimate 2-hour protection. The Heirloom Series Gun Safe offers reliable fire safety while maximizing the protection of your firearms and belongings.
Gun Specifications:
Heirloom Series Gun Safe - Dimensions & Fire Rating
The Heirloom Series Gun Safe is designed with precision to offer both optimal storage space and superior fire protection. Below are the dimensions and fire rating details for each model, providing tailored options for your security needs.
External Dimensions:
Internal Dimensions (Varies by Fire Rating):
-
30-Minute Fire Rating:
Internal Dimensions: 51.5”H x 22”W x 18”D
-
60-Minute Fire Rating:
Internal Dimensions: 50.25”H x 20.75”W x 16.5”D
-
90-Minute Fire Rating:
Internal Dimensions: 49”H x 17.5”W x 15.25”D
-
120-Minute Fire Rating:
Internal Dimensions: 47.75”H x 18.25”W x 14.25”D
Weight:
-
430 to 475 lbs depending on fire rating and internal configuration.
Fire Rating:
-
30-Minute to 90-Minute Fire Protection, offering reliable fire resistance for short to extended periods, with the option to upgrade to a 2-hour rating.
Choose the Heirloom Series Gun Safe for customizable storage, enhanced fire protection, and premium security—designed to protect your firearms and valuables for years to come.
